Crane scales VK ZEUS III RPU

Crane scales VK ZEUS III RPU

  • Crane scales VK ZEUS III RPU;
  • Shockproof aluminum alloy housing;
  • Low power LED display;
  • Degree of dust and moisture protection of scales IP 65;
  • Operating temperature range: from -10 to +40 ° С;
  • Accuracy class: medium III;
  • Safety factor 1,5;
  • Standard:  EN 45501: 2007;
  • Warranty: 36 months.
  • Manufacturer: Ukraine Украина

More details

Select attributes:

Price:

Under the order

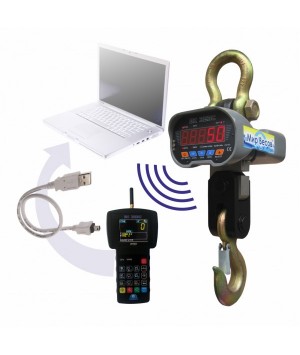

Crane scales of the VK ZEUS III RPU series are equipped with a radio channel control panel, which is an autonomous mobile terminal that allows not only controlling the scales at an impressive distance of up to 250 meters, but also displaying the weighing results on a multi-line TFT color display. This function of the VK ZEUS III RPU suspended balance is indispensable in cases when reading information directly from the balance display is difficult or impossible. Communication between the balance and the remote control is carried out via wireless data transmission. The scales do not require additional permits for operation and operate in the allowed range of radio frequencies approved by the Ukrchastotnaglyad Center. The radio channel control panel is equipped with built-in memory for 20 million weighings and a USB 2.0 interface for transferring summation data to a computer. Also included in the scope of delivery is the free software “Summer”, which allows accounting and processing of weighing results. A distinctive feature of the RPU is the ability to control a group of weights VK ZEUS (up to 16 pieces).

This model of suspended crane scales is intuitively easy to operate and does not require special skills and knowledge from the operator.

Scales VK ZEVS are entered in the state register of measuring instruments of Ukraine No. U3493-14.

The cost of the scales is indicated taking into account the cost of metrological certification.

The main functions of crane scales VK ZEUS III RPU:

recording the balance after unloading;
accumulation of weighing results (summing in memory of the results of several weighings);
taring;
energy saving (automatic shutdown at rest);
preservation of peak loads;
Net / Gross indication to choose from;
weight averaging (HOLD function);
real time clock display.


Characteristic

Designation

3000

5000

10000

Maximum weighing weight max, kg

3000

5000

10000

Minimum weight of weighing min, kg

20

40

100

Resolution, kg

1

2

5

Safe overload

150% max

Power supply

Stand-alone up to 80 hours, built-in rechargeable battery 6V / 10Ah

Display type

Five-digit LED (character height 38mm)

Swivel hook

yes

yes

yes

Remote control

RPU (up to 250m), IP54

The frequency of the radio channel

868 MHz, power up to 10 mW

Integrated RPU interface

USB 2.0

Autonomous power supply of RPU

Built-in 4000mAh Li-Pol battery

Display Type RPU

Graphic TFT 2.8 inches (71 mm), color, multi-line

PC data cable

yes

Optional 6V / 10Ah battery and charger

optional

Connecting a group of scales to the RPU

optional

 Эскиз ВК ЗЕВС III РПУ

Designation

А, мм

В, мм

С, мм

L, мм

Weight, kg

VK ZEUS III RPU 3000

70

100

35

395

16

VK ZEUS III RPU 5000

85

115

40

490

21

VK ZEUS III RPU 10000

94

147

60

770

47
