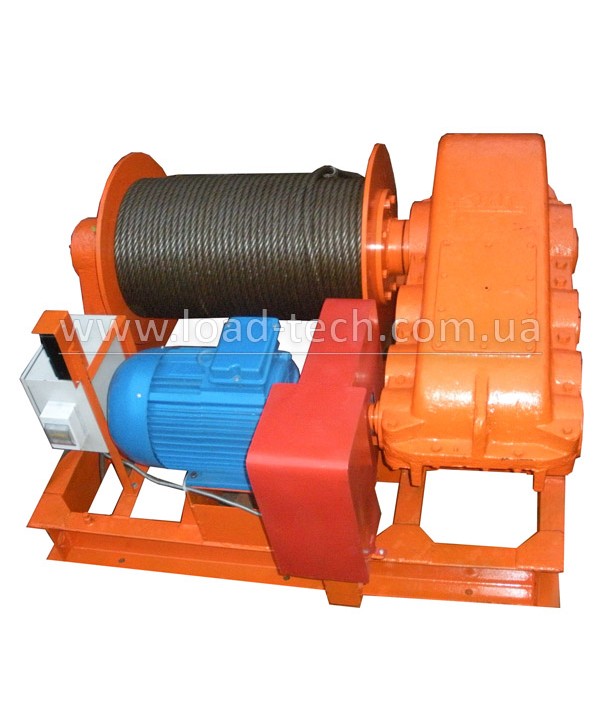

Electric winch 5tn 250m

Select attributes:

Designation :

Reference:

Quantity:

Price:

Under the order

Read the review

Average rating: 10/10 - Number of reviews: 1

heavy objects on construction sites. It can be used as equipment for lifting devices. An irreplaceable thing during installation and traction.

Not suitable for lifting people! Use the winch exclusively for handling loads!

The winch engine provides 5 tons of traction, operating voltage - 380 V.

For explosion proof environments.

Specifications
Rope pull	5 т
Rope winding speed on the first / last layer	0,1/0,15 м/мin
Drum tightness	250 м
The number of layers of rope winding	4
Rope diameter	22,5 мм
Gearbox	ГТ 6-175-11
Gear ratio	175
Drum speed	5 rpm
Mode of operation	ПВ 100%
Electric motor	АИР132 (7.5 kW / 950 rpm)
Voltage	380 V
Dimensions	length - 1500 mm width - 1250 mm height - 1000 mm
Weight	2300 kg

Цена указаная без стоимости каната!

	Хорошая лебедка
Владимир И. on 01/09/2022	Нам на стройплощадку нужна была монтажная лебедка на 5 тонн. Подходит как оборудование для грузоподъемников, так и для перемещения грузов по площадке.
