Rope steel EN 12385-5, 8X19S-FC

  • Steel cargo rope DIN 3062 FE.

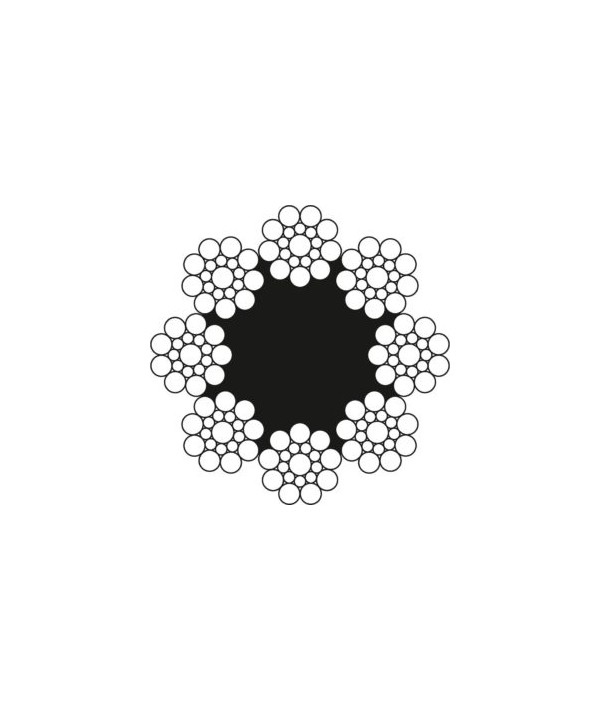

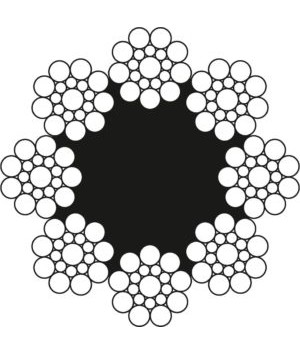

  • Design: 8X19 (1+9+9) 1 f.c., (8x19S-FC).
  • Coating: uncoated, light.
  • Core: synthetic or natural, soft.
  • Standard: EN 12385-5, DIN 3062 (FE).
  • Accompanied by a quality certificate.
  • Manufacturer: Ukraine Ukraine  Stalkanat

More details

Select attributes:

Price:

38,28 грн.

The main scope of the cargo-human rope is the elevator industry. It is also widely used in cranes and ropeways due to its increased flexibility and wear resistance.

Rope diameter, mm

Approximate weight of the lubricated rope, kg/m

Marking group, N/mm²

1370/ 1770

1570

1770

1370/ 1770

1570

1770

Breaking force, kN, not less than

total of all wires in rope

rope as a whole

8

0.218

thirty

34.3

38.7

25.2

28.8

32.5

9

0.275

37.9

43.4

49

31.8

36.5

41.1

10

0.34

46.8

53.6

60.5

39.3

45.1

50.8

11

0.411

56.6

64.9

73.2

47.6

54.5

61.5

12

0.49

67.4

77.2

87.1

56.6

64.9

73.2

13

0.575

79.1

90.6

102

66.4

76.1

85.9

14

0.666

91.7

105

119

77.1

88.3

99.6

15

0.765

105

121

136

88.5

101

114

16

0.87

120

137

155

101

115

130
    • Steel cargo rope DIN 3062 FE.
    • Design: 8X19 (1+9+9) 1 f.c., (8x19S-FC).
    • Coating: uncoated, light.
    • Core: synthetic or natural, soft.
    • Standard: EN 12385-5, DIN 3062 (FE).
    • Accompanied by a quality certificate.
    • Manufacturer: Ukraine Ukraine  Stalkanat
+
