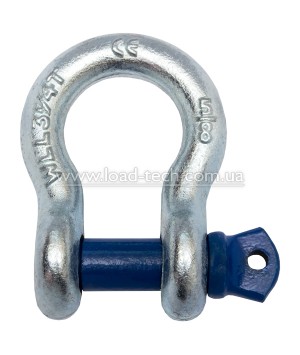

Galvanized omega-shaped shackle type G209 is used as an auxiliary fastener for lifting and moving loads. The screw connection provides quick installation and removal of the bracket, but loses to the bolt-nut-cotter-pin connection in reliability.
The lifting bracket G209 corresponds to the modern standard EN 13889: 2014, the main difference between which and the Soviet standards is the use of high alloy steels, which made it possible to reduce the size and weight of the shackle with the same load capacity.
All shackles are mandatory tested at the stand, accompanied by a passport and a guarantee.
Сarrying capacity, t | Inch size
| Sizes, mm | Weight, kg | ||||||||||
A | B | C | D | E | F | G | H | I | M | N | |||
0.50 | 1/4 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 0.05 |
0.75 | 5/16 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 | 0.09 |
1.00 | 3/8 | 16.8 | 11.20 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 | 0.14 |
1.50 | 7/16 | 19.1 | 12.70 | 42.9 | 11.20 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.20 | 0.17 |
2.00 | 1/2 | 20.6 | 16.00 | 47.8 | 12.70 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.70 | 0.33 |
3.25 | 5/8 | 26.9 | 19.10 | 60.5 | 16.00 | 42.9 | 38.1 | 74.5 | 106.0 | 11.20 | 85.0 | 17.50 | 0.62 |
4.75 | 3/4 | 31.8 | 22.40 | 71.5 | 19.10 | 51.0 | 46.0 | 89.0 | 126.0 | 12.70 | 101.0 | 20.60 | 1.07 |
6.50 | 7/8 | 36.6 | 25.40 | 84.0 | 22.40 | 58.0 | 53.0 | 102.0 | 148.0 | 12.70 | 114.0 | 24.60 | 1.64 |
8.50 | 1 | 42.9 | 28.70 | 95.5 | 25.40 | 68.5 | 60.5 | 119.0 | 167.0 | 14.20 | 129.0 | 26.90 | 2.28 |
9.50 | 1 1/8 | 46.0 | 31.80 | 108.0 | 29.50 | 74.0 | 68.5 | 131.0 | 190.0 | 16.00 | 142.0 | 31.80 | 3.36 |
12.00 | 1 1/4 | 51.5 | 35.10 | 119.0 | 32.80 | 92.5 | 76.0 | 146.0 | 210.0 | 17.50 | 156.0 | 35.10 | 4.31 |
13.50 | 1 3/8 | 57.0 | 38.10 | 133.0 | 36.10 | 92.0 | 84.0 | 162.0 | 233.0 | 19.10 | 174.0 | 38.10 | 6.14 |
17.00 | 1 1/2 | 60.5 | 41.40 | 146.0 | 39.10 | 98.5 | 92.0 | 175.0 | 254.0 | 20.60 | 187.0 | 41.10 | 7.80 |
25.00 | 1 3/4 | 73.0 | 51.00 | 178.0 | 46.70 | 127.0 | 106.0 | 225.0 | 313.0 | 25.40 | 231.0 | 57.00 | 12.60 |
35.00 | 2 | 82.5 | 57.00 | 197.0 | 53.00 | 146.0 | 122.0 | 253.0 | 348.0 | 31.00 | 263.0 | 61.00 | 20.40 |
55.00 | 2 1/2 | 105.0 | 70.00 | 267.0 | 69.00 | 184.0 | 145.0 | 327.0 | 453.0 | 35.10 | 330.0 | 79.50 | 38.90 |
