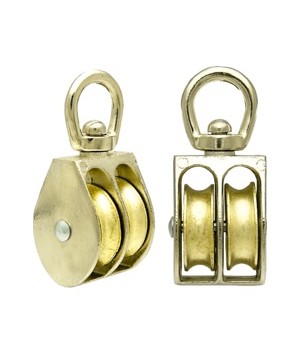

Double nickel plated block
- Rigging nickel-plated block with two pulleys.
- Suitable for steel ropes.
- Production material: case - steel, pulley - steel.
- Coating: nickel-plated.
- It is accompanied by a quality certificate.
- Warranty: 6 months.
Rigging nickel block with two pulleys is widely used in installation works and is mainly used to change the direction of movement of the rope. The block consists of a nickel-plated case with a swivel and two pulleys. A lifting unit with metal pulleys is best suited for working with steel ropes.
|
Designation |
Used rope d, mm |
Working load, kg |
А, mm |
B, mm |
C, mm |
D, mm |
L, mm |
Weight 1 pc, kg |
|
15мм |
4,0 |
20 |
10 |
22 |
13 |
13 |
49 |
0,0416 |
|
20мм |
5,0 |
30 |
10 |
24 |
20 |
19 |
49 |
0,0468 |
|
25мм |
6,0 |
40 |
10 |
28 |
27 |
25 |
60 |
0,0808 |
|
30мм |
8,0 |
50 |
20 |
37 |
36 |
34 |
88 |
0,1752 |
|
40мм |
8,0 |
90 |
20 |
38 |
37 |
36 |
88 |
0,1806 |
|
50мм |
8,0 |
120 |
20 |
40 |
49 |
48 |
105 |
0,3130 |
- Rigging nickel-plated block with two pulleys.
- Suitable for steel ropes.
- Production material: case - steel, pulley - steel.
- Coating: nickel-plated.
- It is accompanied by a quality certificate.
- Warranty: 6 months.
+
