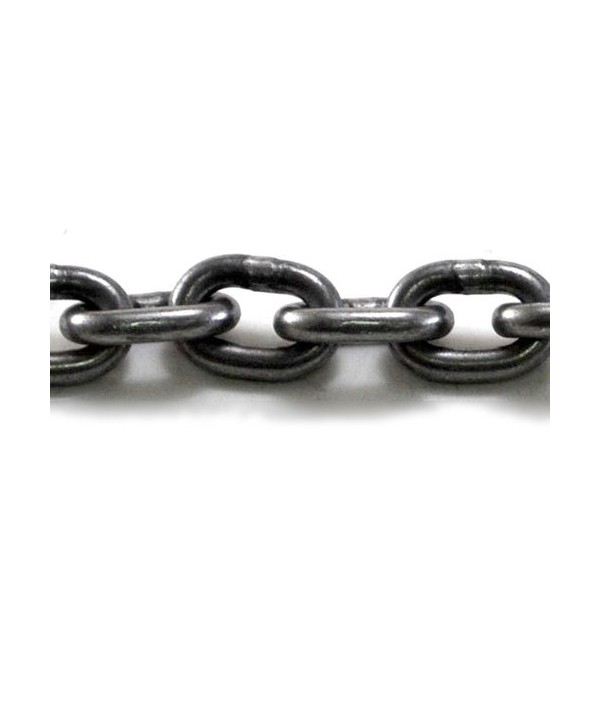

Cargo chain class 5
- Lifting chain of the 5th class (Grade 50).
- Safety factor: 2:1.
- Production material: round carbon steel.
- Standard: ГОСТ 2319-81.
- Accompanied by a quality certificate.
- Warranty: 6 months.
- Manufacturer: Ukraine
Load and traction chains are used to move and lift large loads. The scope of these chains is very extensive and diverse. Among them are the main ones - conveyor conveyors, escalators, bucket elevators, coal combines, mechanisms with motor and manual drive, various branches of animal husbandry, forestry, oil and fishing industries.
|
Designation |
Chain gauge, d |
Step, p |
Work load |
Breaking load |
Weight 1m |
|
|
mm |
mm |
kN |
kN |
kg |
|
6x19 |
6 |
19 |
18 |
28 |
0.8 |
|
8x24 |
8 |
24 |
26 |
57 |
1.42 |
|
8x34 |
8 |
34 |
20 |
40 |
1.27 |
|
9x27 |
9 |
27 |
32 |
64 |
1.84 |
|
10x65 |
10 |
65 |
40 |
80 |
1.76 |
|
11x31 |
11 |
31 |
50 |
100 |
2.75 |
|
11x35 |
11 |
35 |
47 |
95 |
2.54 |
|
13x36 |
13 |
36 |
65 |
147 |
3.9 |
|
13x45 |
13 |
45 |
66 |
139 |
3.5 |
|
13x50 |
13 |
50 |
100 |
170 |
3.6 |
|
14x50 |
14 |
50 |
77 |
154 |
3.9 |
|
16x44 |
16 |
44 |
100 |
200 |
5.7 |
|
16x56 |
16 |
56 |
100 |
200 |
4.94 |
|
18x50 |
18 |
50 |
160 |
320 |
7.4 |
|
18x64 |
18 |
64 |
260 |
320 |
6.6 |
|
22x66 |
22 |
66 |
250 |
400 |
10.6 |
|
22x86 |
22 |
86 |
190 |
380 |
9.6 |
|
24x86 |
24 |
86 |
220 |
452 |
11.4 |
|
26х92 |
26 |
92 |
320 |
500 |
13.7 |
You can buy a class 5 cargo chain in our stores in Odessa, Kiev, Kharkov and Lvov or order delivery to anywhere in Ukraine.
- Lifting chain of the 5th class (Grade 50).
- Safety factor: 2:1.
- Production material: round carbon steel.
- Standard: ГОСТ 2319-81.
- Accompanied by a quality certificate.
- Warranty: 6 months.
- Manufacturer: Ukraine
+
