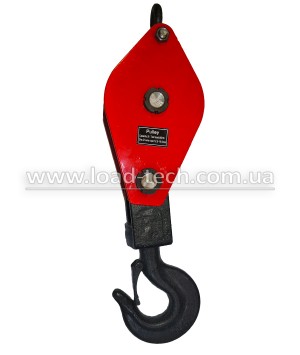

Snatch block with double sheave
- Cargo block (mounting) with a hook.
- Number of clips: 2.
- Material of manufacture: steel.
- Coating: painting.
- It is accompanied by a quality certificate.
- Standard: EN 13157: 2018.
- Warranty: 12 months.
- Manufacturer: China
Cargo blocks (mounting) are used when lifting and moving cargo, installation work. Their main purpose is to increase the strength of a person or hoist when lifting and change the direction of movement of the rope or cable.
The block is equipped with a snap hook. Due to the presence of two rollers, the load capacity of the block is increased, compared with a single-sheave block.
The design includes rolling bearings.
|
Lifting capacity t |
Used rope, ф (мм) |
Sheave diameter, мм |
Weight 1pcs kg |
|
|
Working |
Max |
|||
|
1,0 |
6,2 |
7,8 |
71 |
2,85 |
|
2,0 |
8,0 |
11,0 |
85 |
4,75 |
|
3,2 |
11,0 |
14,0 |
110 |
9,85 |
|
5,0 |
12,0 |
15,0 |
130 |
15,35 |
|
10,0 |
16,5 |
20,0 |
180 |
35,20 |
- Cargo block (mounting) with a hook.
- Number of clips: 2.
- Material of manufacture: steel.
- Coating: painting.
- It is accompanied by a quality certificate.
- Standard: EN 13157: 2018.
- Warranty: 12 months.
- Manufacturer: China
+
