Grade80 (G80) chain slings are assembled from modern components of the 8th strength class, which can significantly reduce weight while maintaining high load ratings. Chain slings have a wide scope. Especially in demand when working in aggressive environments, at high temperatures, as well as for working with loads that have a shifted center of gravity or sharp edges.
Benefits:
compactness;
maintainability;
durability;
resistance to high temperatures *;
resistance to mechanical damage;

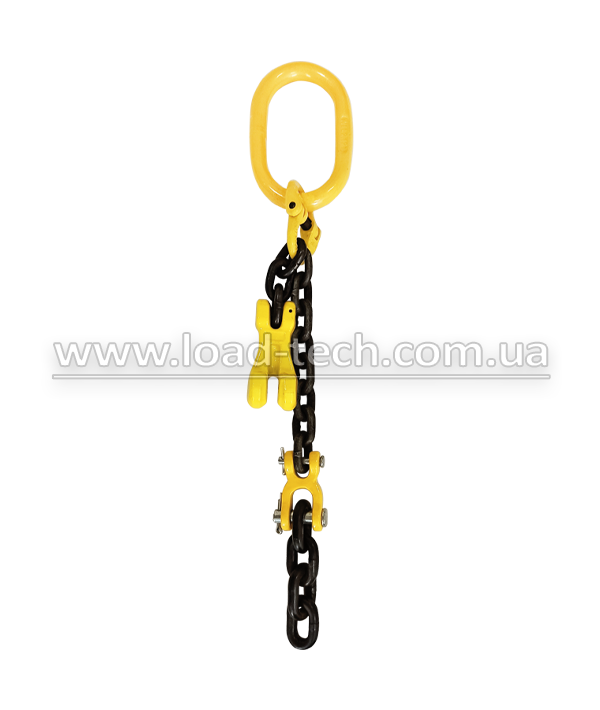

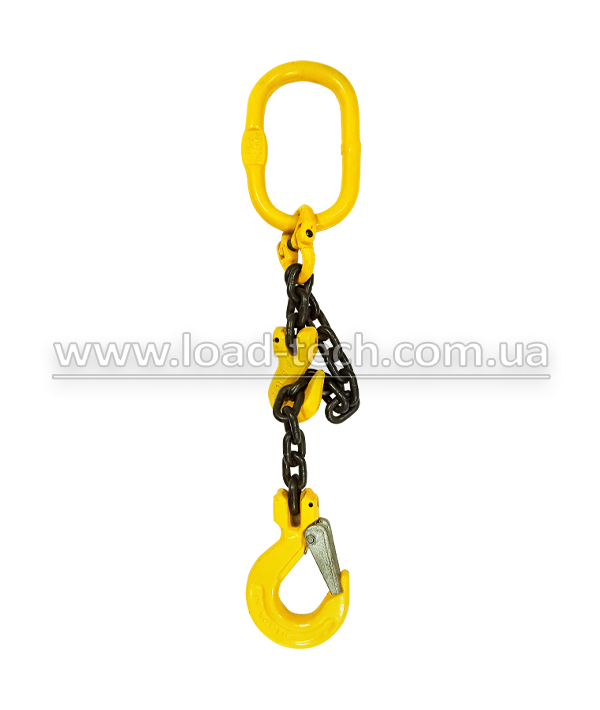

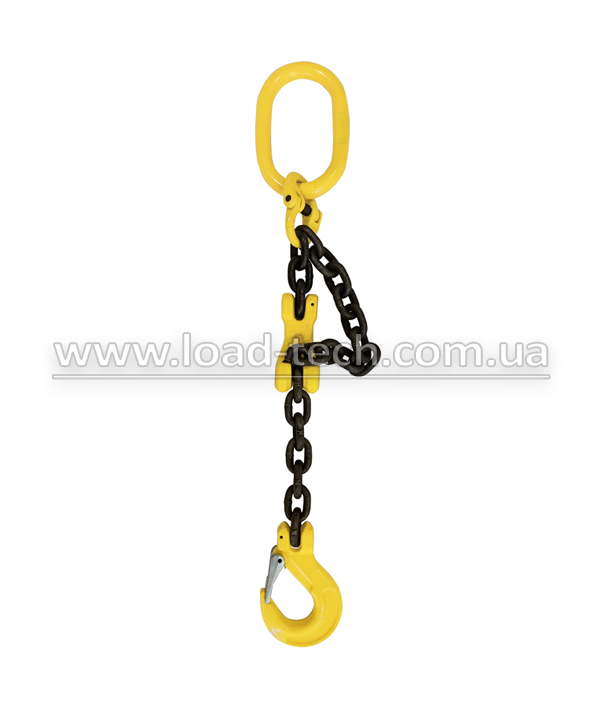

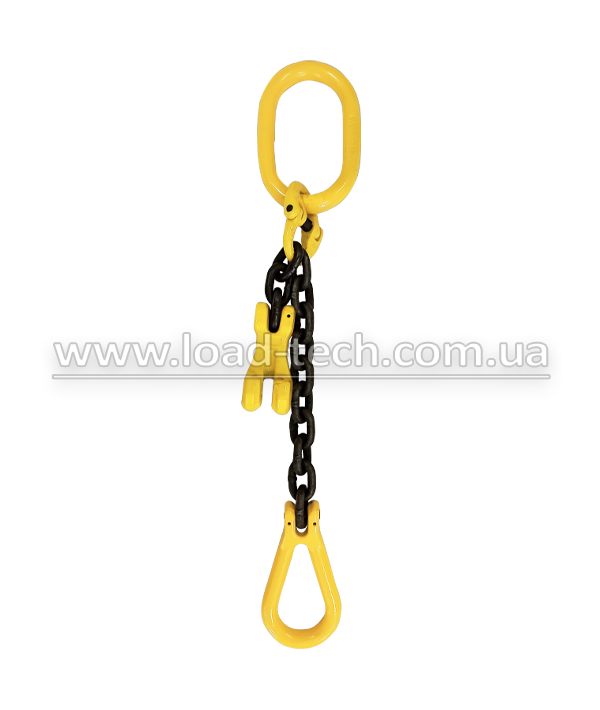

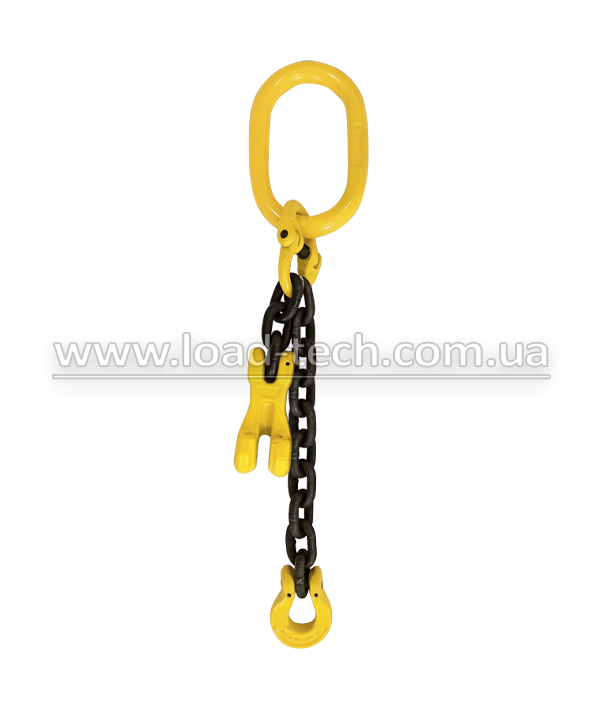

the ability to adjust the length of the branches (optional);
Disadvantages:
large net weight;
not intended for sharp dynamic loads;
chain defects and wear are difficult to detect;
damage fragile goods, as well as carefully prepared surfaces;
The symbol of the sling: Sling SLCS A / B
Where A is the lifting capacity of the sling in tons; B is the length of the sling in millimeters.
Example: Sling SLCS 3.15 / 1000 -1 pcs. (one-branch chain sling with a lifting capacity of 3.15 tons, 1 meter long in the amount of 1 pc.)
* Temperature dependence of load capacity:
|
Lifting capacity, t |
Chain identification |
|
1,12 |
6х18 |
|
2,0 |
8х24 |
|
3,15 |
10х30 |
|
5,3 |
13х39 |
|
8,0 |
16х48 |
|
12,5 |
20х60 |
|
15,0 |
22х66 |
|
21,2 |
26х96 |
|
31,5 |
32х116 |

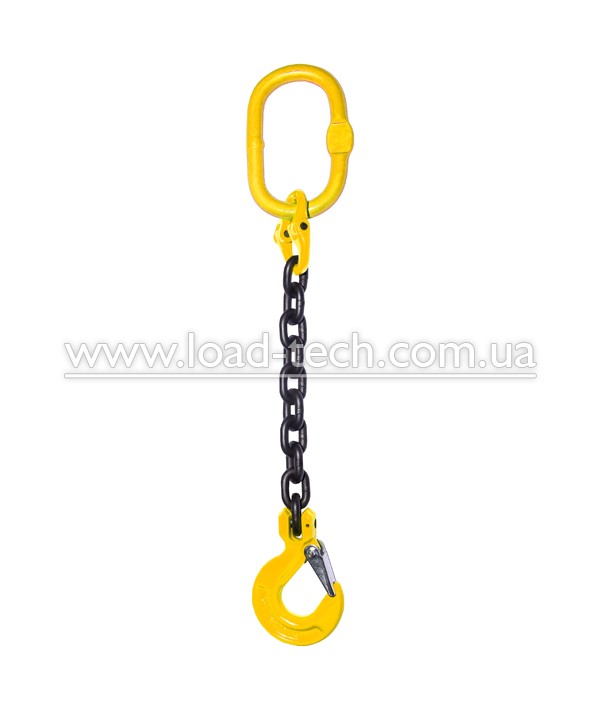

- Single branch chain sling

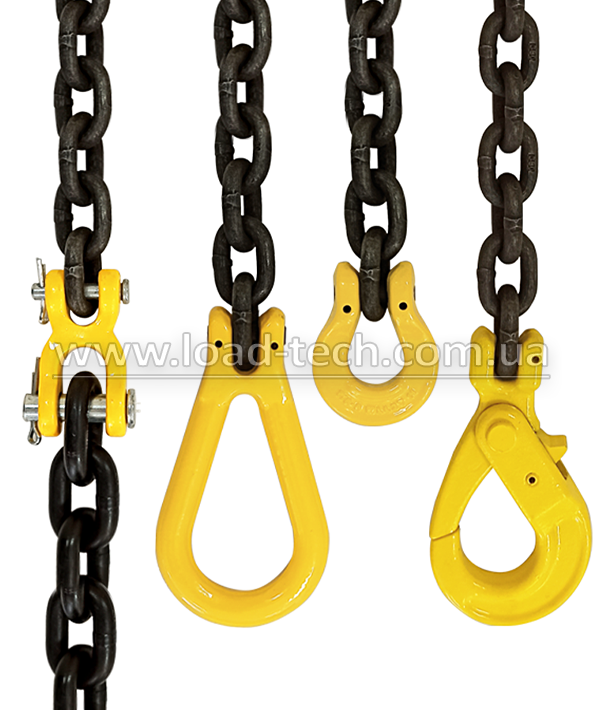

- Material: lifting chains G80, accessories G80;
- Safety factor: 4: 1;
- Application temperature range: from -40 ° to +400 ° C;
- Standard: ДСТУ EN 818-4: 2017;
- Warranty: 6 months.
- Manufacturer: LTD LOAD-TECH, Ukraine
