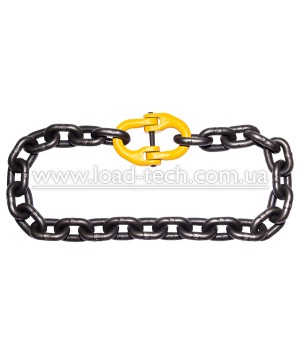

Endless chain sling
- Material: lifting chains G80, accessories G80;
- Safety factor: 4: 1;
- Application temperature range: from -40 ° to +400 ° C;
- Standard: ДСТУ EN 818-4: 2017;
- Warranty: 6 months.
- Manufacturer: LTD LOAD-TECH, Ukraine
ODESSA
KYIV
KHARKIV
Grade80 (G80) chain slings are assembled from modern components of the 8th strength class, which can significantly reduce weight while maintaining high load ratings. Chain slings have a wide scope. Especially in demand when working in aggressive environments, at high temperatures, as well as for working with loads that have a shifted center of gravity or sharp edges.
Benefits:
compactness;
maintainability;
durability;
resistance to high temperatures *;
resistance to mechanical damage;
the ability to adjust the length of the branches (optional);
Disadvantages:
large net weight;
not intended for sharp dynamic loads;
chain defects and wear are difficult to detect;
damage fragile goods, as well as carefully prepared surfaces;
The symbol of the sling: Sling ECS A / B
Where A is the lifting capacity of the sling in tons; B is the length of the sling in millimeters.
Example: Sling ECS 1.8 / 2000 -2 pcs. (endless chain sling with a lifting capacity of 1.8 tons, a length of 2 meter in the amount of 2 pc.)
* Temperature dependence of load capacity:
Lifting capacity, t |
Chain identification |
1,8 |
6х18 |
3,15 |
8х24 |
5,0 |
10х30 |
8,5 |
13х39 |
12,5 |
16х48 |
20,0 |
20х60 |
23,6 |
22х66 |
33,5 |
26х96 |
50,0 |
32х116 |
