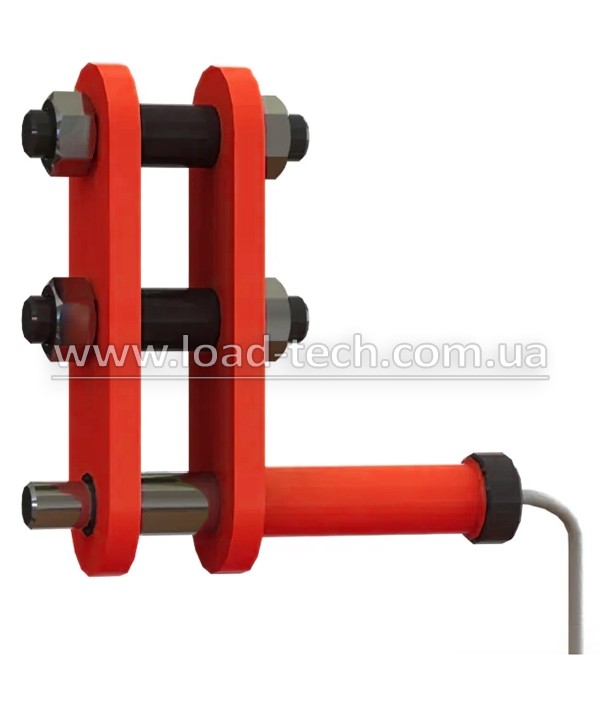

Smal lock clamp
- Smal lock.
- Safety factor: 4: 1.
- Production material: high-strength alloy steel.
- Standard: DSTU EN 13155: 2018.
- It is accompanied by a quality certificate.
- Warranty: 12 months.
- Manufacturer: Ukraine

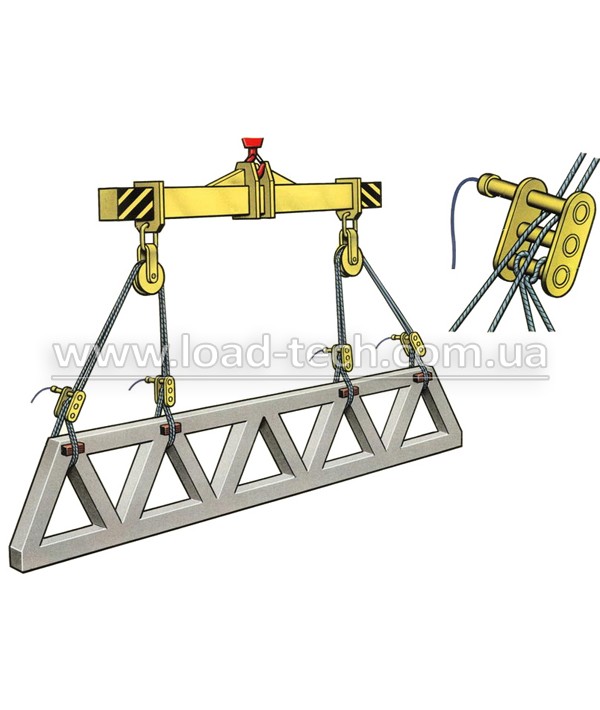

There are times when a load moved to a height needs to be unstrapped while at the zero point. Only Smal lock can handle such a task. Due to the special design of the clamp, the unbinding takes place with the help of the lower axis, which is retracted by the operator, as a result of which the loop of the sling falls out of the gripper holder. The axle is automatically returned to its original position by a spring installed in the protective casing.
|
Designation |
WLL, t |
H, мм |
В, мм |
L, мм |
ØD, мм |
Weight, kg |
|
Smal lock |
1 |
180 |
38 |
170 |
24 |
7 |
|
2 |
220 |
42 |
185 |
30 |
11 |
|
|
3 |
290 |
46 |
200 |
36 |
17 |
|
|
5 |
340 |
55 |
250 |
42 |
21 |
|
|
8 |
380 |
70 |
300 |
50 |
32 |
You can buy the Smal lock clamp in our stores in Odessa, Kiev and Kharkov, or order delivery anywhere in Ukraine.
- Smal lock.
- Safety factor: 4: 1.
- Production material: high-strength alloy steel.
- Standard: DSTU EN 13155: 2018.
- It is accompanied by a quality certificate.
- Warranty: 12 months.
- Manufacturer: Ukraine
+
