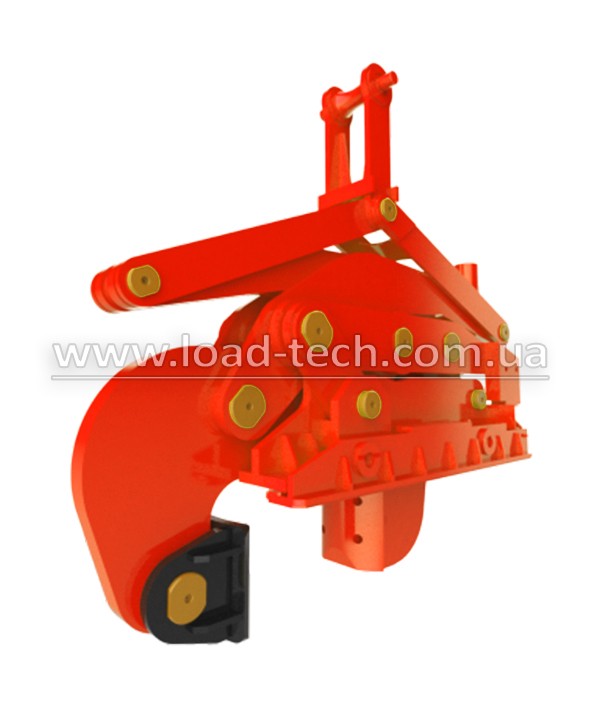

Clamp for steel coils
- Clamp for steel coils.
- Safety factor: 4: 1.
- Production material: high-strength steel.
- Standard: DSTU EN 13155: 2018.
- It is accompanied by a quality certificate.
- Warranty: 12 months.
- Manufacturer: Ukraine
The clamp for steel coils is specially designed for those cases when it is necessary to move steel in coils of very large mass (over 10 tons). Along with a large carrying capacity, the indisputable advantage of this type of clamp is the ability to lift rolls located directly on the ground, when lifting them there is no way to pass slings between the roll and the floor surface.
|
Designation |
WLL, t |
Hmin, мм |
B, мм |
Amax, мм |
C, мм |
Weight min, kg |
|
Clamp for steel coils |
10 |
2500 |
1800 |
1200 |
250-400 |
1600 |
|
16 |
2900 |
2000 |
1500 |
250-450 |
2300 |
|
|
20 |
3100 |
2600 |
270-520 |
3300 |
||
|
25 |
3300 |
2800 |
2000 |
350-700 |
4600 |
You can buy a clamp for steel coils in our stores in Odessa, Kiev and Kharkov or order delivery anywhere in Ukraine
- Clamp for steel coils.
- Safety factor: 4: 1.
- Production material: high-strength steel.
- Standard: DSTU EN 13155: 2018.
- It is accompanied by a quality certificate.
- Warranty: 12 months.
- Manufacturer: Ukraine
+
