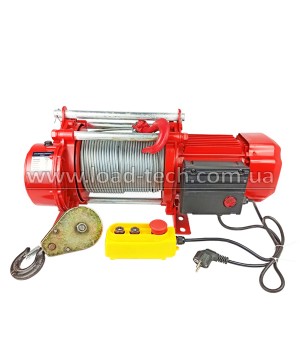

Single-phase electric winch KCD 60m 220V POLTEK

Electric rope winch, the body of which is made of aluminum by casting. Releases heat slowly, has high power and low noise.

For normal operation, the engine must have a voltage of 220V (60Hz). If the voltage is not adequate, the internal lift force may be reduced.

Installation and debugging of the lift:

1. You need to check whether the accessories and spare parts are in accordance with the instructions, whether the faucet is damaged, and whether the drive head has fallen off. Regardless of whether the motor is exposed to rain or immersed in water, it should be dried so that the insulation resistance exceeds 15MOm.
2. The lift is fixed with a special base. The installation must be stable and able to withstand the load of the long-term rated lifting weight.
3. The motor uses single-phase power. It must be securely grounded.
4. Once the winch motor is connected to the power source, the switch can be activated to perform a test lift without load, checking the reliability and braking.
5. Check and replace high temperature oil after 300 hours of inactivity.
