Heavy duty load skates systems XY

Heavy duty load skates systems XY

  • Set of roller blocks for transportation of heavy and bulky goods;
  • Simple and reliable design;
  • Handle with towing hook for loader;
  • Steel rollers with polyurethane coating;
  • Bearings of increased wear resistance;
  • Warranty: 12 months.

More details

Select attributes:

Price:

5 186,00 грн.

Load skates systems are designed to move, or turn on the spot, bulky heavy (up to 36 tons) of cargo. We simply cannot do without cargo handling systems in cases where it is necessary to move equipment (metalworking machines, furnaces, boilers, presses, hammers, industrial refrigerators, production lines, etc.) in a room where it is impossible to use a crane of the required lifting capacity. Armed with just the XY jack and roller system, any structure or equipment can be moved without fear of spoiling the flooring and without superhuman efforts.

перемещение грузаперемещение груза роликовыми системами

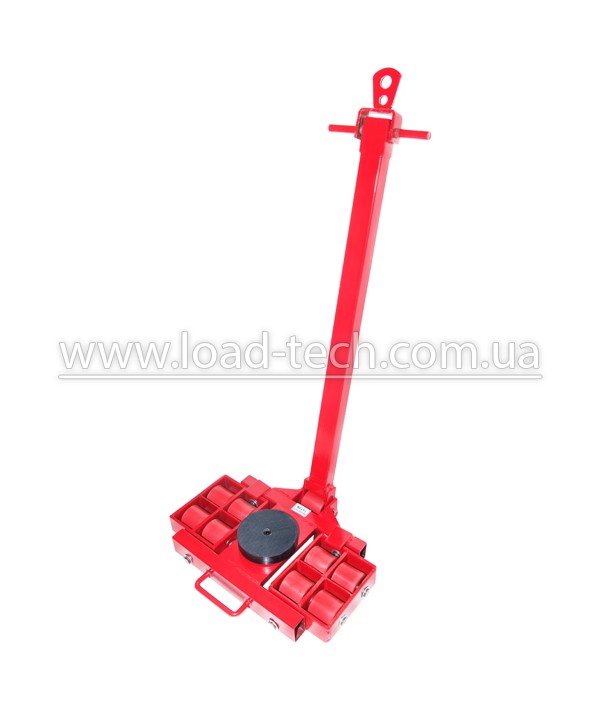

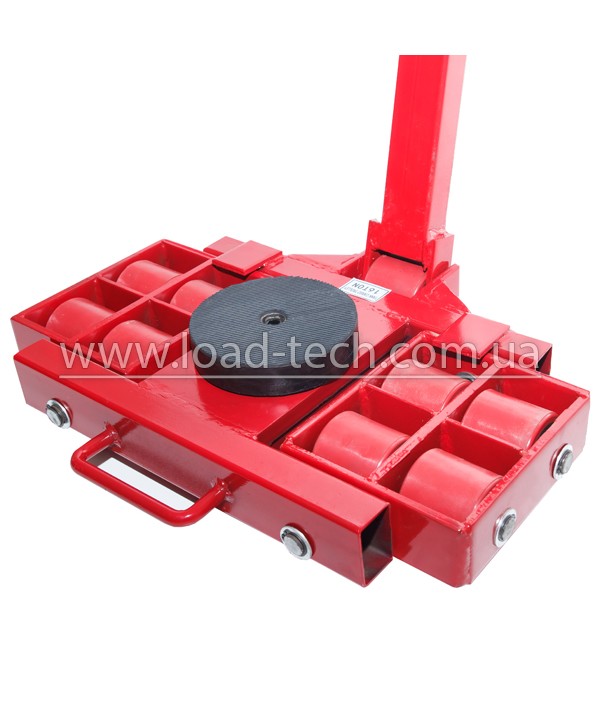

Load skates systems consists of two parts: a front roller block with a rotary platform and a control handle, and rear supports (two roller blocks with a connecting bar). To move the load, it must be lifted with a jack by 120 mm, and then put roller blocks under it. After installing the load on the roller blocks, it is ready to move.

Load skates systems have a smooth ride and minimal rolling resistance.

All models of load skates systems have anti-slip rubber coating of surfaces in contact with the load.

Model

XY-08

XY-16

XY-24

XY-32

XY-36

Carrying capacity

kg

8000

16000

24000

32000

36000

Full mass

kg

28

72

100

124

138

Swivel Diameter

мм

150

160

180

200

200

Swivel pad size

мм

140х120

200х160

220х180

240х200

280х200

Handle length

мм

800

1100

1100

1100

1500

Width of the rear legs assembly

мм

300-1000

400-1300

400-1400

400-1500

400-1500

Overall dimensions

мм

230х230х110

170х140х110

560х420х110

200х200х110

750х450х110

256х200х110

936х500х110

310х220х110

780х550х110

300х550х110

Number of casters front / rear

pc

4/4

8/8

12/12

16/16

18/18

    • Set of roller blocks for transportation of heavy and bulky goods;
    • Simple and reliable design;
    • Handle with towing hook for loader;
    • Steel rollers with polyurethane coating;
    • Bearings of increased wear resistance;
    • Warranty: 12 months.
