Steel rope DIN 3055 in PVC sheath

Steel rope DIN 3055 in PVC sheath

  • Steel double lay rope type LK-O in PVC sheath.

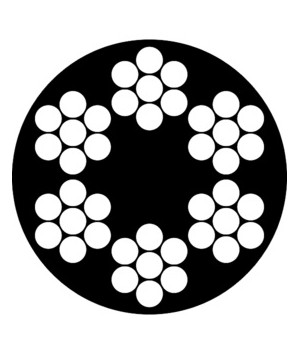

  • Construction: 6x7 (1 + 6) + 1 ° C.
  • Coating: galvanized, PVC.
  • Core: organic, soft.
  • Standard: DIN 3055 (FE).
  • It is accompanied by a quality certificate.
  • Manufacturer: India Индия


More details

Select attributes:

Price:

4,48 грн.

A galvanized steel rope (cable) according to DIN 3055 in a PVC braid consists of six strands and an organic core, on top of the rope is covered with a layer of polyvinyl chloride (PVC). The polymer coating significantly increases the life of the rope, prevents the harmful effects of the environment and sunlight. The main scope of the polymer-coated rope is installation work, suspension of cables and road signs, mast extensions, securing of cargo or structures, rigging, as a TIR cable. The rope according to DIN 3055 in PVC sheath has high tensile strength, good flexibility and low tensile coefficient. The service life of the rope, provided there is no mechanical damage, is up to 20 years.

Rope diameter, мм

Weight 1m rope, kg

Breaking strength, not less, N

3,0

0,014

1950

4,0

0,031

4390

5,0

0,061

7800

6,0

0,095

11300

8,0

0,138

16200
