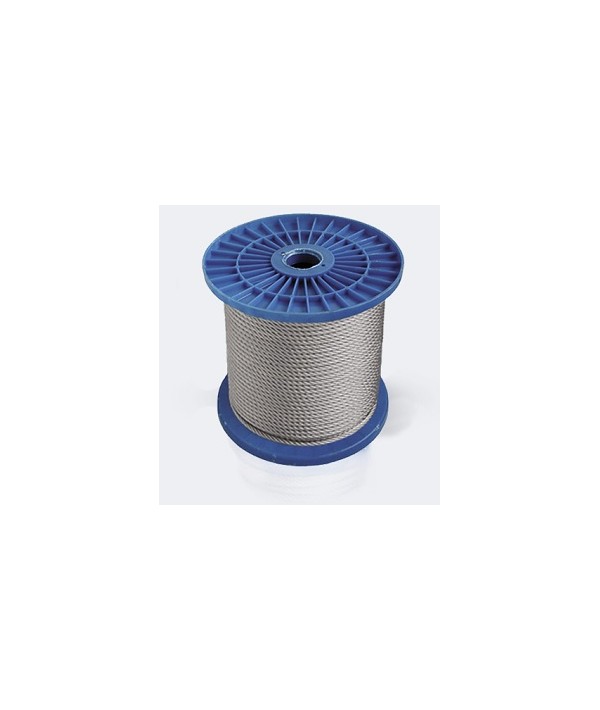

Steel rope DIN 3060 in PVC sheath
- Rope steel double lay type TK in PVC sheath.

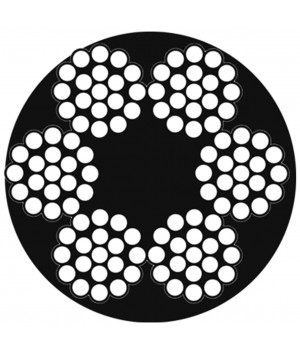

- Construction: 6x19 (1+6+12)+1o.s., 6x19M-FC
- Coating: galvanized, PVC.
- Core: synthetic, soft.
- Standard: DIN 3060 (FE).
- Accompanied by a quality certificate.
Galvanized steel rope (cable) according to DIN 3060 in PVC sheath consists of six strands and an organic core, the rope is covered with a layer of polyvinyl chloride (PVC) on top. The polymer coating significantly increases the service life of the rope, prevents the harmful effects of the environment and sunlight. The main field of application of polymer-coated rope is installation work, suspension of cables and road signs, stretching of masts, securing cargo or structures, rigging, as a TIR rope. Rope according to DIN 3060 with PVC sheath has high tensile strength, good flexibility and low elongation. The service life of the rope, provided there is no mechanical damage, is up to 20 years.
|
Rope diameter, mm |
Weight of 1m rope, kg |
Breaking force, not less than, N |
|
10.0 |
0.346 |
37600 |
|
12,0 |
0,498 |
- |
You can buy a DIN 3060 steel rope in a PVC sheath in our stores in Odessa, Kyiv and Kharkov or order delivery anywhere in Ukraine.
- Rope steel double lay type TK in PVC sheath.
- Construction: 6x19 (1+6+12)+1o.s., 6x19M-FC
- Coating: galvanized, PVC.
- Core: synthetic, soft.
- Standard: DIN 3060 (FE).
- Accompanied by a quality certificate.
+
