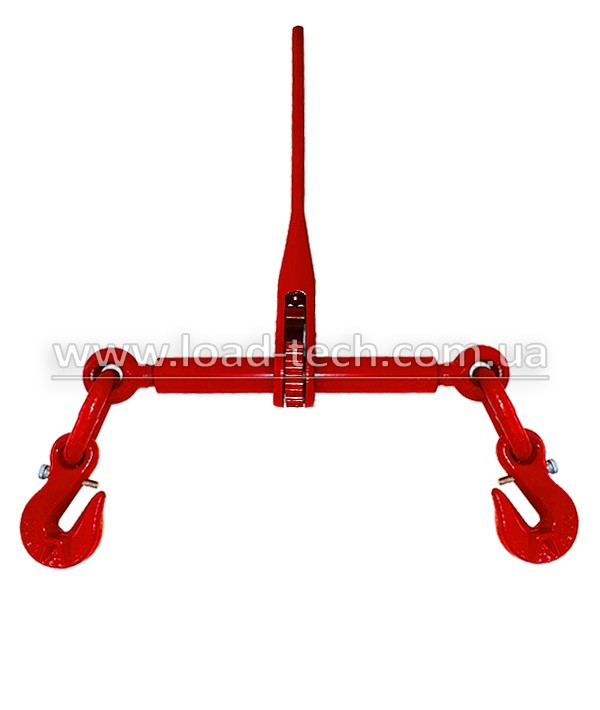

RATCHET LOAD BINDER with safety pin

RATCHET LOAD BINDER with safety pin

  • Ratchet load binder for transport chains.
  • Safety pin in shortening hook.
  • There is a rotation switch.
  • Material of manufacture: high alloy steel.
  • Tensile Strength: 150mm.
  • Safety margin: 2: 1.
  • Standard: EN 12195-3: 2018.
  • Warranty: 6 months.
  • Manufacturer: Poland Польша

More details

Select attributes:

Price:

950,69 грн.

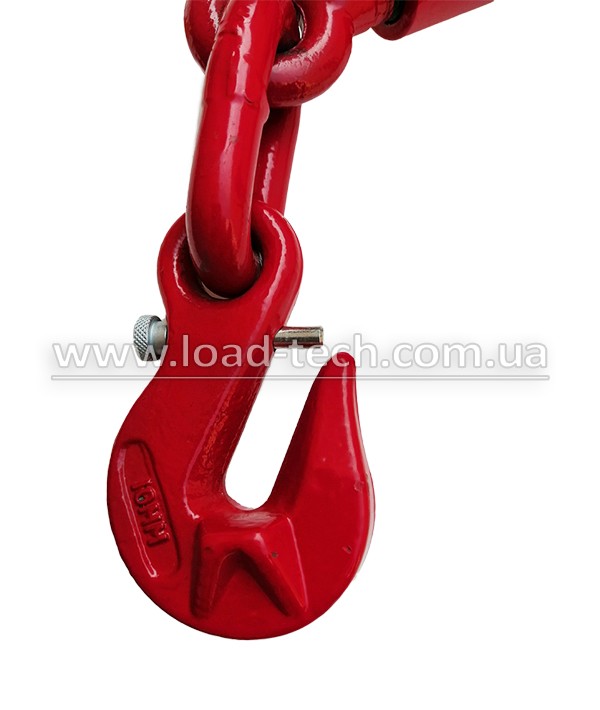

It differs from the usual chain ratchet by the presence of a safety pin in the shortener hook, this provides increased reliability of fixing by the device and eliminates the possibility of the hook slipping off the chain link during cargo transportation.

A chain ratchet is a mechanism designed to tension a chain when securing a cargo. The ratchet is equipped with a convenient handle and a rotation switch. Applying force to the handle of the mechanism, you thereby force the hooks to converge or diverge, due to which tension or weakening of the chain is achieved.

After selecting the chain ratchet of the required capacity, to complete the kit, please select the fastening chain of the desired length.

Working load limit, t (WLL)

4,0

6,3

10,0

16,0

Chain working gauge, mm (inch)

6-8

(1/4"-5/16")

8-10

(5/16"-3/8")

10-13

(3/8"-1/2")

13-16

(1/2"-5/8")

 Цепной рэтчет

A

180

360

360

360

B

45

70

70

70

E min

410

580

640

670

E max

540

790

850

870

F min

450

640

700

750

F max

580

840

900

950

Weight, kg

3,5

5,0

5,8

6,6



    • Ratchet load binder for transport chains.
    • Safety pin in shortening hook.
    • There is a rotation switch.
    • Material of manufacture: high alloy steel.
    • Tensile Strength: 150mm.
    • Safety margin: 2: 1.
    • Standard: EN 12195-3: 2018.
    • Warranty: 6 months.
    • Manufacturer: Poland Польша
