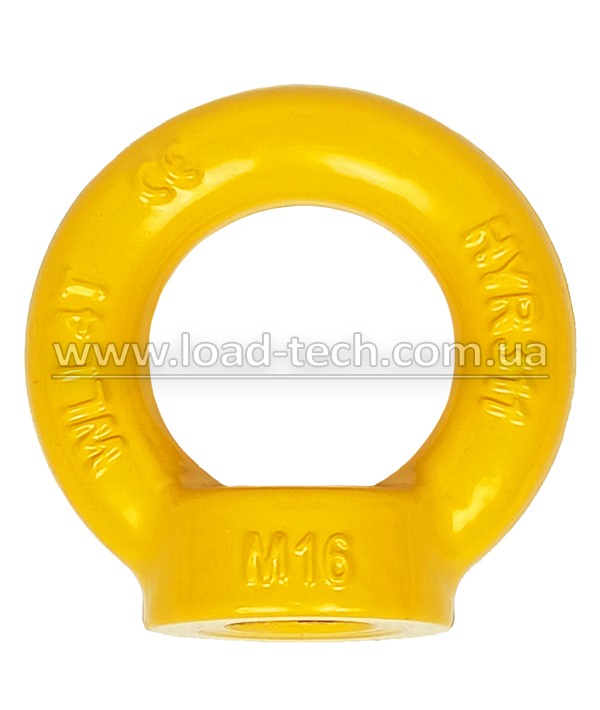

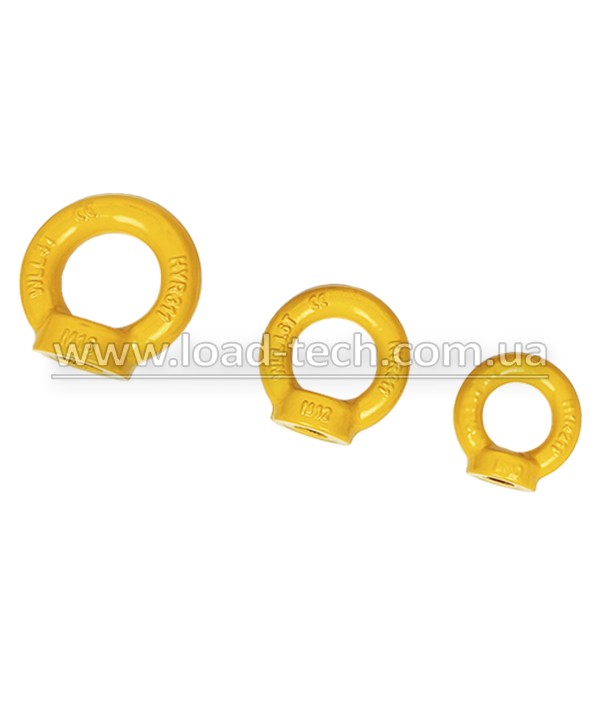

Eye nut G80 (SL-55)
- Nut with ring, grade 8 (Grade 80);
- Safety factor: 4:1;
- Material: alloy steel;
- Accompanied by a quality certificate;
- Warranty: 6 months.
Nut with ring (eye nut) cargo G80. One side is screwed onto the fastening elements of a part or equipment, and the other side is equipped with a ring.
The ring nut designation G80 corresponds to the internal thread pitch of the nut.
|
Designation A, mm |
Working load, tons |
B, mm |
A, mm |
H, mm |
L, mm |
Weight 1 piece, kg |
|
|
at 0° |
at 90° |
||||||
|
M8 |
1 |
0.4 |
36 |
20 |
36 |
15 |
0.05 |
|
M10 |
1 |
0.4 |
45 |
25 |
45 |
18 |
0.09 |
|
M12 |
2 |
0.75 |
54 |
thirty |
53 |
22 |
0.16 |
|
M16 |
4 |
1.5 |
63 |
35 |
62 |
28 |
0.24 |
|
M20 |
6 |
2.3 |
72 |
40 |
71 |
30 |
0.36 |
|
M24 |
8 |
3.2 |
90 |
50 |
90 |
38 |
0.72 |
|
M30 |
12 |
4.5 |
108 |
60 |
109 |
45 |
1.3 |
|
M36 |
16 |
7 |
126 |
70 |
128 |
55 |
2.08 |
|
M42 |
24 |
9 |
144 |
80 |
147 |
65 |
3.1 |
You can buy a G80 ring nut in our stores in Odessa, Kyiv, Kharkov and Lvov or order delivery anywhere in Ukraine.
- Nut with ring, grade 8 (Grade 80);
- Safety factor: 4:1;
- Material: alloy steel;
- Accompanied by a quality certificate;
- Warranty: 6 months.
+
