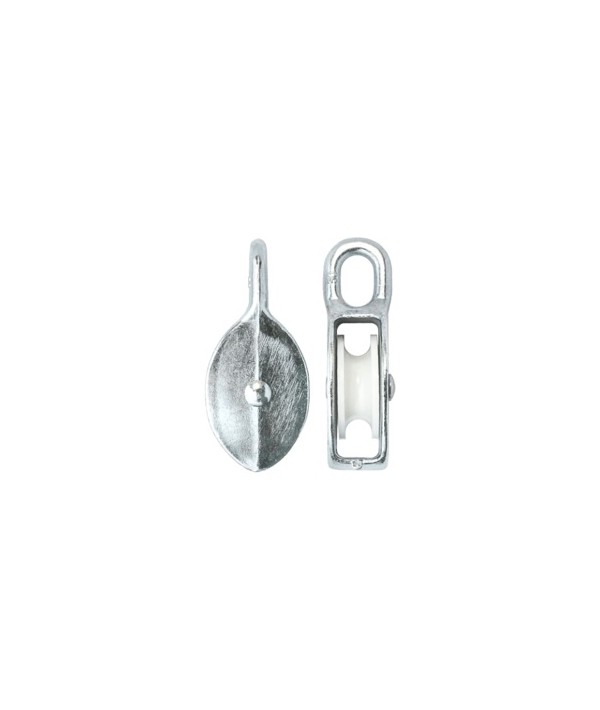

Single galvanized block

  • Lifting galvanized block with one pulley.
  • Suitable for synthetic and organic ropes.
  • Production material: case - steel, pulley - nylon.
  • Coating: galvanized.
  • It is accompanied by a quality certificate.
  • Warranty: 6 months.


More details

Select attributes:

Price:

24,64 грн.

rating Read the review
Average rating: 10/10 - Number of reviews: 1

The lifting galvanized block with one pulley is widely used in installation works and is mainly used to change the direction of movement of the rope. The block consists of a galvanized case with a shackle and one pulley. The lifting unit with a nylon pulley is best suited for working with soft synthetic (nylon, polyamide, polypropylene) or organic (hemp, sisal, jute) ropes.

Блок одношкивный оцинкованный

Designation

Used rope d, mm

Working load, kg

 Breaking load, kg

А, mm

B, mm

C, mm

D, mm

L, mm

Weight 1 pc, kg

15мм

6,0

 150 450

10

8

17

15

50

0,0232

20мм

7,0

 200 600

11

9

21

19

60

0,0368

25мм

7,0

 230 690

12

10

26

25

70

0,0570

30мм

8,0

 250 750

13

12

30

30

80

0,0762

40мм

10,0

 300 900

14

12

40

40

93

0,1372

50мм

12,0

 390 1170

16

14

50

50

113

0,2312

65мм

16,0

 450 1350

20

16

65

65

135

0,3882
    • Lifting galvanized block with one pulley.
    • Suitable for synthetic and organic ropes.
    • Production material: case - steel, pulley - nylon.
    • Coating: galvanized.
    • It is accompanied by a quality certificate.
    • Warranty: 6 months.
