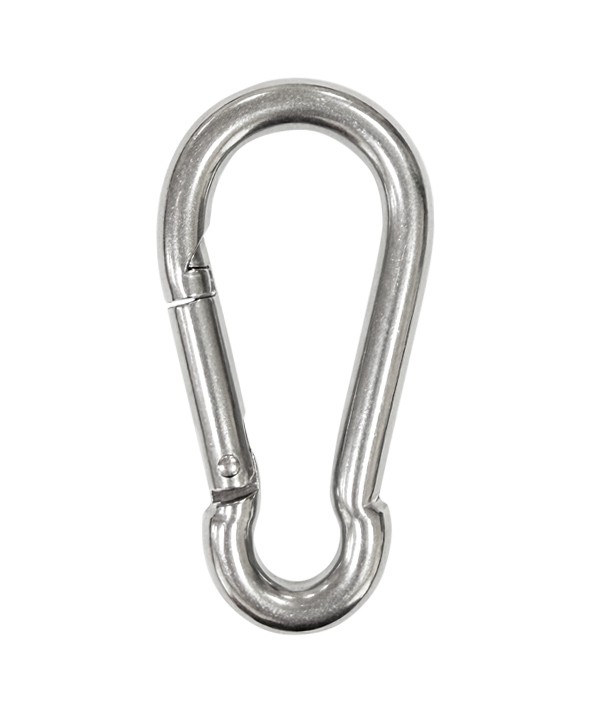

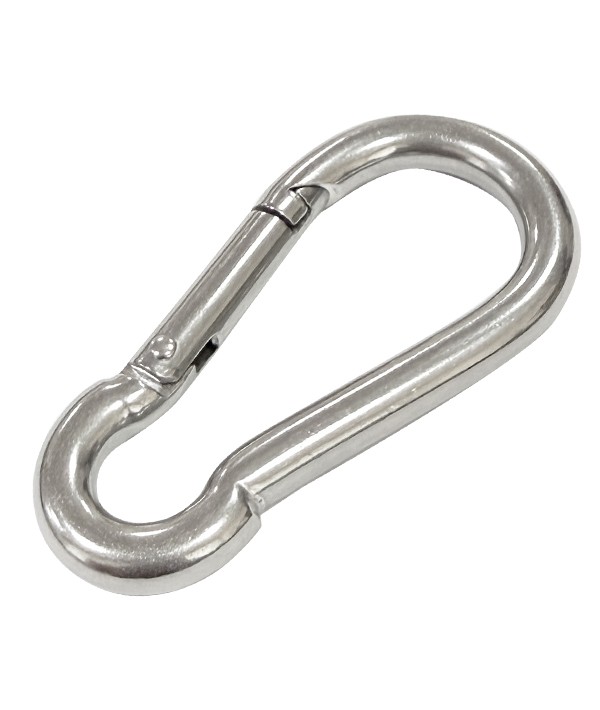

Stainless steel fire carbine DIN 5299C
Stainless steel snap hook.
Safety factor: 1.5: 1.
Material of manufacture: stainless steel.
Steel grade: AISI 316 (A4).
Standard: DIN 5299C.
Accompanied by a quality certificate.
Warranty: 6 months.
The snap hook or the so-called “fire” snap hook is a universal fastener that serves to quickly connect ropes, cables, chains and other elements of fastening systems to each other.
The carbine conforms to the modern European standard DIN 5299. The designation of the carbine is determined by the diameter of the bar.
The material from which this carabiner is made is high-quality stainless steel that is resistant to acidic environments. The product does not lose its properties in salt and chlorinated water, and is also not afraid of high temperatures.
All carbines must pass tests at the stand, accompanied by a passport and a guarantee.
|
Designation |
Bar diameter Ø, mm |
A, mm |
C, mm |
D, mm |
E, mm |
L, mm |
Weight 1 pcs, kg |
|
4mm |
4 |
20 |
5 |
6 |
5 |
41.5 |
0.013 |
|
5mm |
5 |
25 |
7.5 |
8 |
6 |
51.5 |
0.014 |
|
6mm |
6 |
30 |
9 |
9 |
7 |
60 |
0.026 |
|
7mm |
7 | 35 | 10 | 11 | 9 | 70 | 0.045 |
|
8mm |
8 | 40 | 10 | 12 | 10 | 80 | 0.065 |
|
9mm |
9 | 45 | 12 | 13 | 11 | 90 | 0.085 |
|
10mm |
10 |
50 |
14 |
15 |
11 |
100 |
0.120 |
Stainless steel snap hook.
Safety factor: 1.5: 1.
Material of manufacture: stainless steel.
Steel grade: AISI 316 (A4).
Standard: DIN 5299C.
Accompanied by a quality certificate.
Warranty: 6 months.
+
Stainless steel fire carbine DIN 5299C
