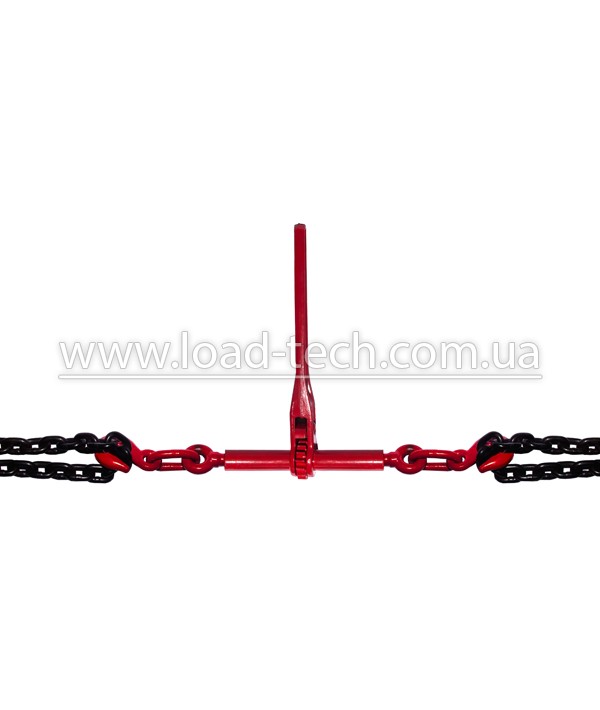

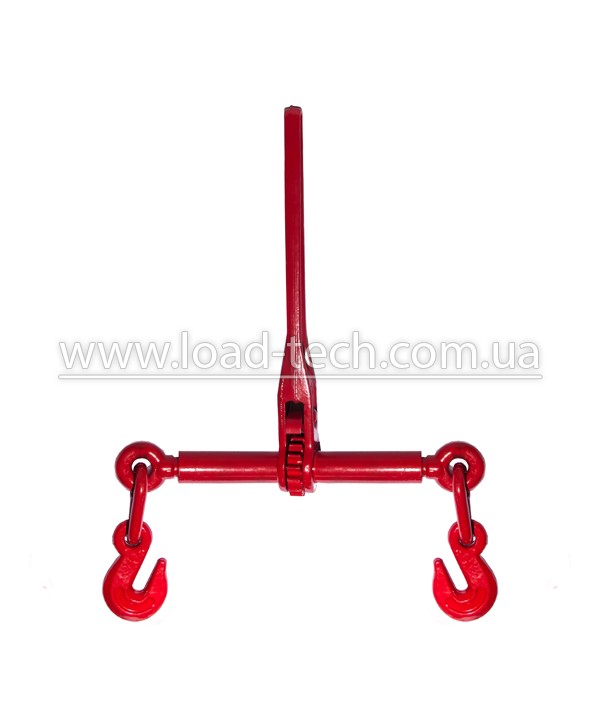

Ratchet Load binder

Ratchet Load binder

  • Tensioner for chain ties.
  • There is a rotation switch.
  • Material of manufacture: high alloy steel.
  • Tensile Strength: 150mm.
  • Safety margin: 2: 1.
  • Standard: EN 12195-3: 2018.
  • Warranty: 6 months.
  • Manufacturer: Poland Польша

More details

Select attributes:

Price:

502,43 грн.

rating Read the review
Average rating: 10/10 - Number of reviews: 1

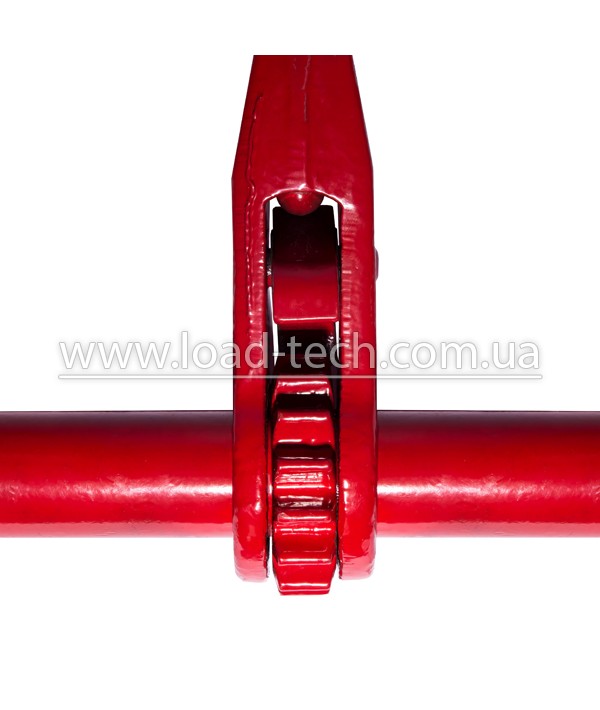

A chain ratchet is a mechanism designed to tension a chain when securing a load using a chain tie. The chain binder consists of a chain ratchet, as well as a piece of chain. The ratchet is equipped with a convenient handle and a rotation switch. Applying force to the handle of the mechanism, you thereby force the hooks to converge or diverge, due to which tension or weakening of the chain is achieved.

After selecting the chain ratchet of the required capacity, to complete the chain tie, please select the fastening chain of the desired length.


Working load limit, t (WLL)

4,0

6,3

10,0

16,0

Chain working gauge, mm (inch)

6-8

(1/4"-5/16")

8-10

(5/16"-3/8")

10-13

(3/8"-1/2")

13-16

(1/2"-5/8")

 Цепной рэтчет

A

180

360

360

360

B

45

70

70

70

E min

410

580

640

670

E max

540

790

850

870

F min

450

640

700

750

F max

580

840

900

950

Weight, kg

3,5

5,0

5,8

6,6



    • Tensioner for chain ties.
    • There is a rotation switch.
    • Material of manufacture: high alloy steel.
    • Tensile Strength: 150mm.
    • Safety margin: 2: 1.
    • Standard: EN 12195-3: 2018.
    • Warranty: 6 months.
    • Manufacturer: Poland Польша

Click here to leave a review


Стяжка
Степан С. on 04/22/2020

Очень надёжные, не первый раз перевожу технику ни разу ещё не подвели
