Lifting chain 10 class

  • Round link lifting chain of Grade 10 (Grade 100).
  • 25% stronger compared to the G80.
  • Safety factor: 4: 1.
  • Material of manufacture: heat-treated (hardened) alloy steel.
  • Coating: painted.
  • Standard: EN 818-2: 2017, DIN 5687.
  • It is accompanied by a quality certificate.
  • Warranty: 6 months.


More details

Select attributes:

Price:

498,40 грн.

rating Read the 2 reviews
Average rating: 10/10 - Number of reviews: 2

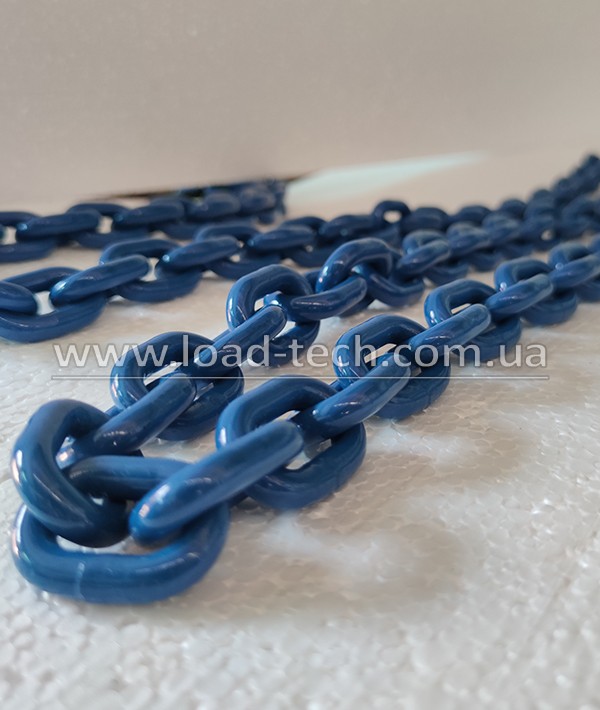

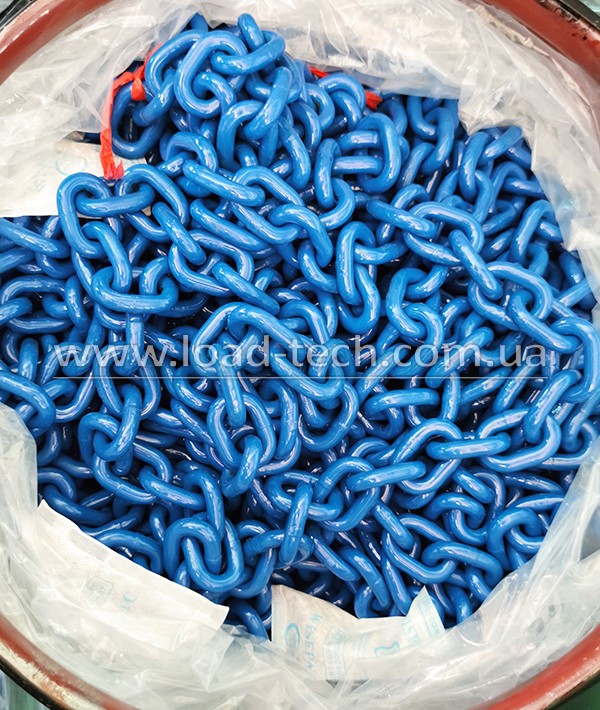

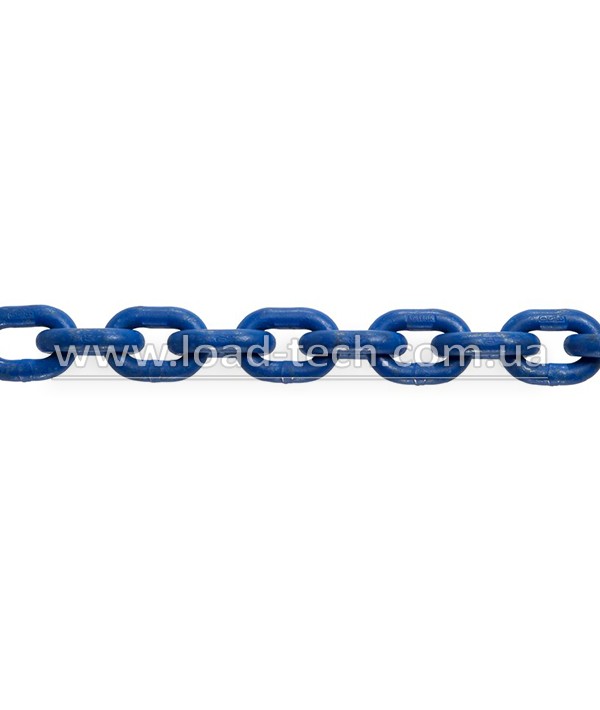

A round link chain of 10 strength class (Grade100) is used for the manufacture of 10 class chain slings, chain ties, hand chain hoists, as an anti-theft chain for a bicycle and motorcycle, as well as for other useful household purposes. Due to the use of high-strength alloy steel in the manufacture of the load-lifting chain, it has high strength (25% stronger than G80) with low weight and compact dimensions. Complies with  EN 818-2-2017, DIN 5687. Painted chain, blue.

Цепь грузовая 8 класса

Designation



Chain gauge, d

Step p

Width, мм

Work load

Breaking load

Weight 1m

мм

мм

a

b

т

т

кг

6x18

6

18

8.7

21.6

1,40

5,6

0.95

8x24

8

24

10.9

28.8

2,5

10,0

1.57

10x30

10

30

13.5

36.0

4,00

16,0

2.46

13x39

13

39

17.5

46.8

6,70

26,8

4.18

    • Round link lifting chain of Grade 10 (Grade 100).
    • 25% stronger compared to the G80.
    • Safety factor: 4: 1.
    • Material of manufacture: heat-treated (hardened) alloy steel.
    • Coating: painted.
    • Standard: EN 818-2: 2017, DIN 5687.
    • It is accompanied by a quality certificate.
    • Warranty: 6 months.
